78/164 Bosch Rexroth AG Hydraulics

DS4 RE 00843/02.07

Components / valves

Pressure control valves

Manual operation

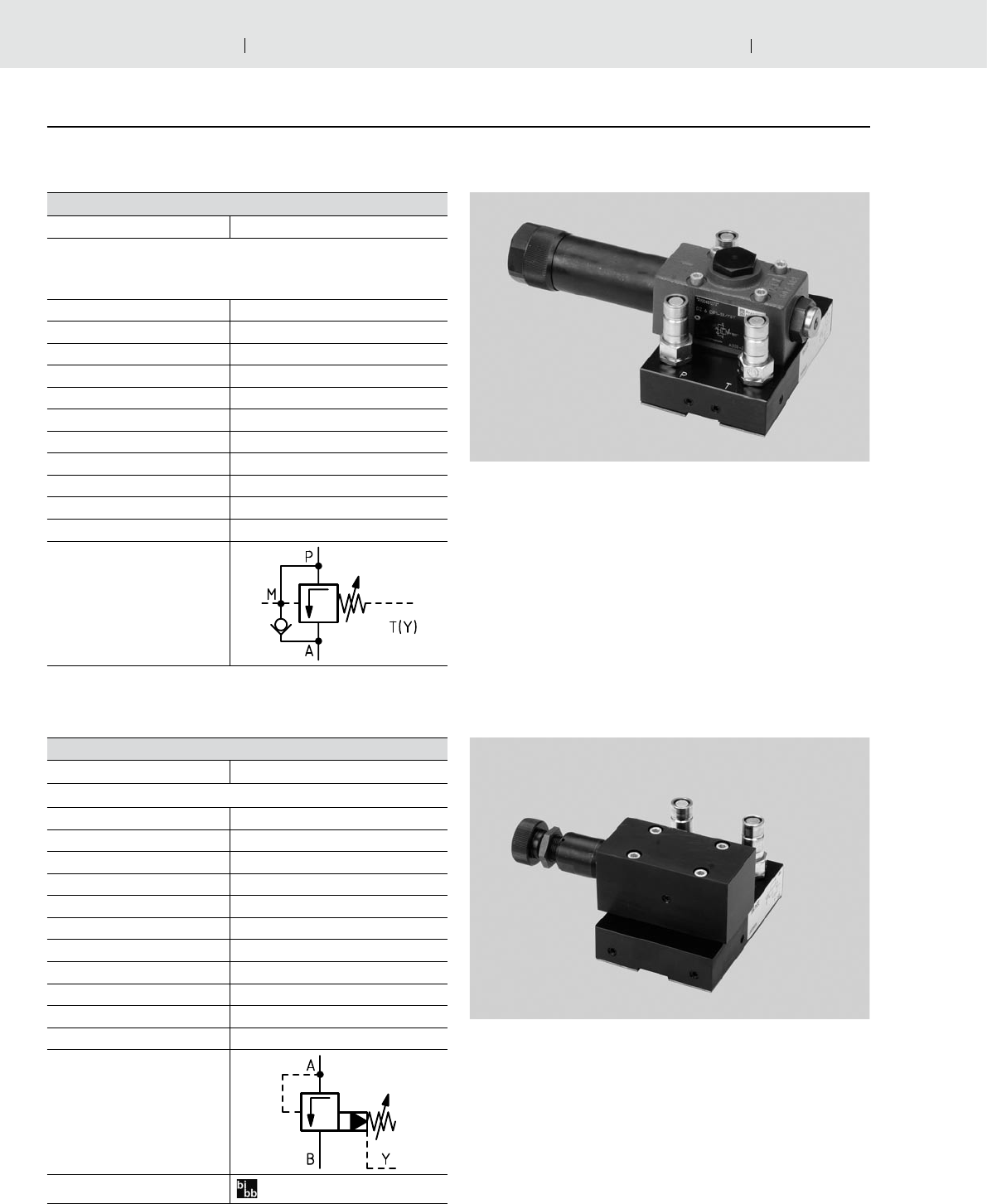

Pressure sequencing valve, direct operated

Material no.

R961002558

Adjustment by means of hand wheel, internal pilot oil supply,

external leakage oil drain, with check valve, mounted on com-

ponent plate

Didactic designation DD3.NV-W

Industrial type DZ6DP1-5X/75Y

Information on industrial type

RE 26076

Dimensions mm W 205 x D 125 x H 95

Weight kg 2.73

Temperature max. °C 70

Size 6

Operating pressure max.

bar 100

Sequencing pressure max.

bar 75

Flow max. l/min 15

Type of actuation Manual

Symbol

Pressure relief valve, pilot operated

Material no.

R961002545

Didactic designation DD4.1NV-W

Industrial type DB6K1-4X/50YV

Information on industrial type

RE 25731

Dimensions mm W 160 x D 125 x H 105

Weight kg 1.8

Temperature max. °C 70

Size 6

Operating pressure max.

bar 100

Set pressure max. bar 50

Flow max. l/min 15

Type of actuation Manual

Symbol
